The 10 Best Heating Stepper Motor

The DM556T is brand STEPPERONLINE and manufactured by Leadshine(The most famous stepper driver company in China).

Overview:

The DM556T is a digital stepper driver with simple design and easy setup. By implementing Leadshine advanced stepper control technology, this stepper driver is able to power 2-phase and 4 phase stepper motors smoothly with optimal torque and low motor heating and noise. Its operating voltage is 20-50VDC and it can output up to 5.6A current. All the micro step and output current are done via DIP switches. Therefore, the DM556T are ideal choices for applications requiring simple step and direction control of NEMA 23 and 24 stepper motors.

Key Features:

* Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
* Motor auto-identification and parameter auto-configuration for optimal torque from wide-range motors
* Step and direction (PUL/DIR) control
* Multi-Stepping for smooth motor movement
* TTL compatible and optically isolated inputsto 5.6A
* Input voltage 20-50VDC
* 16 selectable micro-step resolutions of 400-25,600 via DIP switches
* 8 selectable output current settings of 1.8A to 5.6A via DIP switches
* Soft-start with no “jump” when powered on
* Pulse input frequency up to 200 KHz
* Automatic idle-current reduction
* Protections for over-voltage and over-current

Electrical Specifications:

* Output Peak Current: 1.8~5.6A (4.0 RMS)
* Input Voltage: +20~50VDC (Typical 24-48VDC)
* Logic Signal Current: 7~16mA (Typical 10mA)
* Pulse Input Frequency: 0~200kHz
* Pulse Width: 2.5μS
* Isolation Resistance: 500MΩ

* Weight: Approx.300g (10.6oz)

Packing List:

1 x Digital Stepper Driver DM556T
1 x Full DM556T Driver Manual

Our RTELLIGENT stepper motor is specially designed for accurate control of position and speed. The biggest characteristic of step motor is “digital” For each pulse signal from the controller, the stepper motor driven by its runs at a fixed angle (“One step” for short)

Electronic Specification of Step Motor:

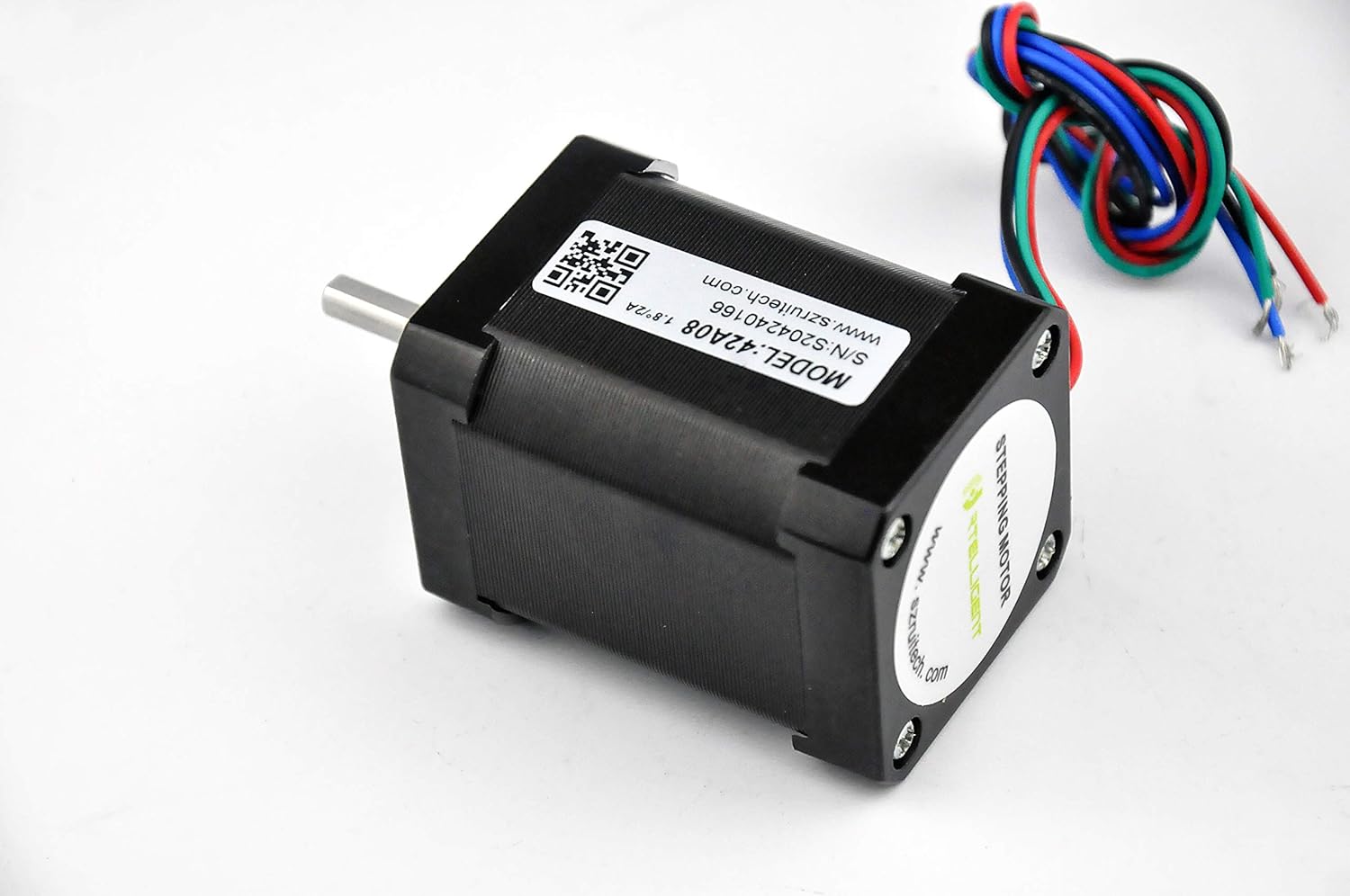

◆ Product Model: 42A08
◆ Motor Type: Hybrid, open loop
◆ Step Angle: 1.8°±5% (full step, no-load)
◆ Rated Current: 1.8A
◆ Phase: 2
◆ Number of Lead: 4
◆ Holding Torque: 0.71Nm (100.6oz-in)
◆ Ambient temperature: -10℃ – 50℃
◆ Mounting Position: Axis horizontal or vertical installation
◆ Phase Resistance: 2.0Ohm ± 10%
◆ Phase Inductance: 4.8mH ± 20%
◆ Rotor Inertia: 114g.cm²

Physical Specification of Stepping Motor:
◆ Shaft Diameter: 5mm
◆ Motor Body Length: 60mm
◆ Motor Frame Size: 42*42mm
◆ Weight: 0.50kg

Default Connection:
Red (A), Green (B), Blue (C), Black (D)

Wide Application:
The stepper motor is widely use for 3D printers, robot arm parts, medical equipment, labeling machine, welding machine, laser CNC machine, automatic devices, etc.

Package Contents:
1 x 42A08 digital stepper motor (open loop)

⚠ Warning: Make sure the motor is connected to a constant current or chopper drive controller before testing. Connecting the motor directly to a power supply will destroy it.

Overview:

This driver is an industrial-grade fully digital stepper drive developed with advanced DSP control algorithm based on the latest motion control technology.
Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors.
Compared with other analog or TB6600 chips driver, it can drive a stepper motor at much lower noise, lower heating, and smoother movement.

Key Features:

* Anti-Resonance provides optimal torque and nulls mid-range instability
* Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
* Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
* 15 selectable microstep resolutions: 1/2, 1/4, 1/5, 1/8, 1/10, 1/16, 1/20, 1/25, 1/32, 1/40, 1/50, 1/64, 1/100, 1/125, 1/128
* Soft-start with no “jump” when powered on
* 8 selectable peak current including 1.00A to 4.20A
* Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
* Automatic idle-current reduction
* Suitable for 2-phase and 4-phase motors
* Support PUL/DIR mode
* Over-voltage and over-current protections

Electrical Specifications:

* Output Peak Current: 1.0~4.2A (3.0 RMS)
* Input Voltage: +20~50VDC (Typical 36VDC)
* Logic Signal Current: 7~16mA (Typical 10mA)
* Pulse Input Frequency: 0~200kHz
* Pulse Width: 2.5μS
* Isolation Resistance: 500MΩ
* Cooling: Natural Cooling or Forced cooling
* Environment: Avoid dust, oil fog and corrosive gases
* Operating Temperature: -10℃~45℃
* Vibration: 10-55Hz / 0.15mm
* Weight: Approx.210g (7.4oz)

Packing List:

1 x Stepper Driver DM542T
1 x Full DM542T Driver Manual

Our RTELLIGENT stepper motor is specially designed for accurate control of position and speed. The biggest characteristic of step motor is “digital” For each pulse signal from the controller, the stepper motor driven by its runs at a fixed angle (“One step” for short)

Electronic Specification of Step Motor:

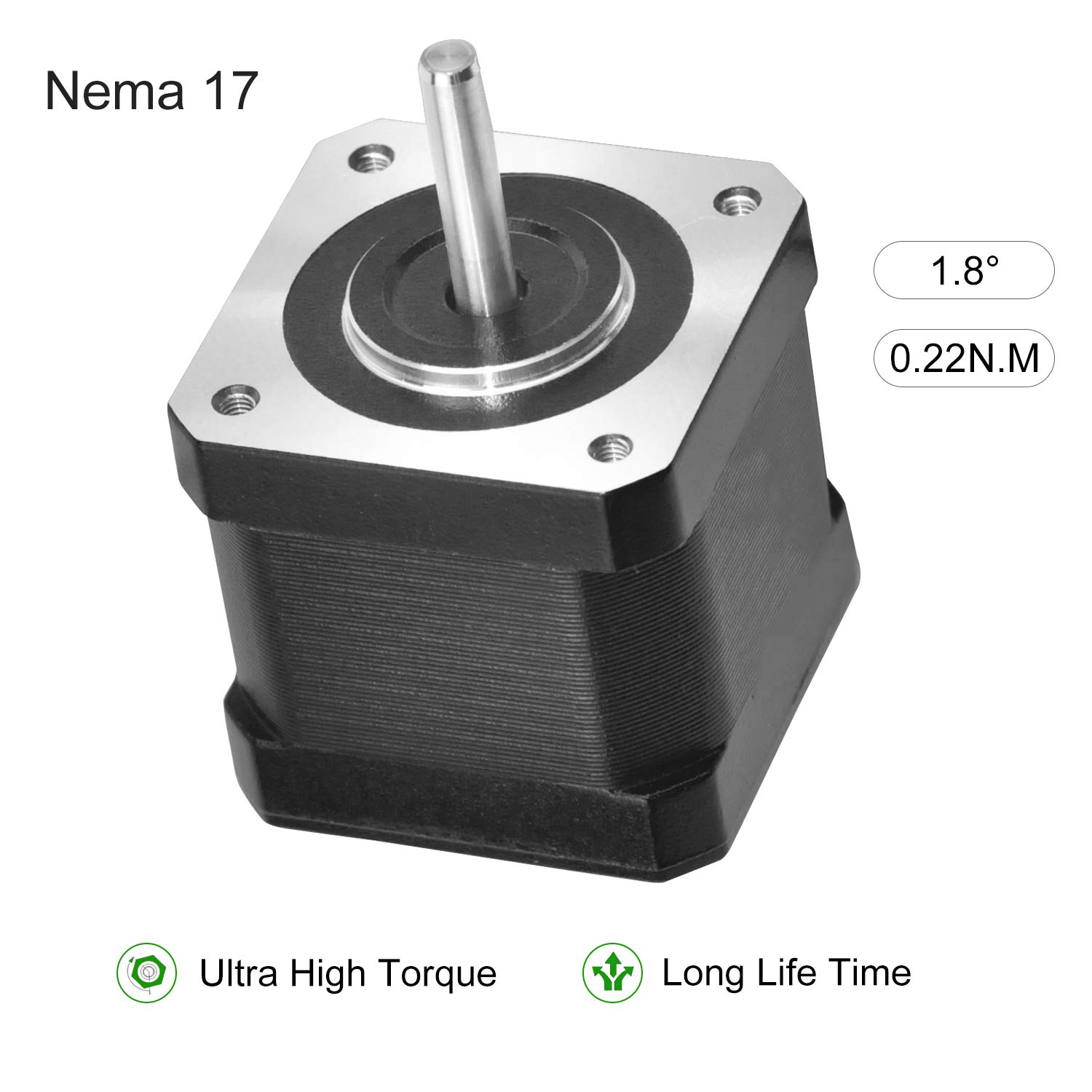

◆ Product Model: 42A02
◆ Motor Type: Hybrid, open loop
◆ Step Angle: 1.8°±5% (full step, no-load)
◆ Rated Current: 1.2A
◆ Phase: 2
◆ Number of Lead: 4
◆ Holding Torque: 0.22Nm (31.2oz.in)
◆ Ambient temperature: -10℃ – 50℃
◆ Mounting Position: Axis horizontal or vertical installation
◆ Phase Resistance: 2.5Ohm ± 10%
◆ Phase Inductance: 5.5mH ± 20%
◆ Rotor Inertia: 57g.cm²

Physical Specification of Stepping Motor:
◆ Shaft Diameter: 5mm
◆ Motor Body Length: 40mm
◆ Motor Frame Size: 42*42mm
◆ Weight: 0.30kg

Default Connection:
Red (A), Green (B), Blue (C), Black (D)

Wide Application:
The hybrid stepper motor is widely use for 3D printers, medical equipment, laser CNC machine, automatic devices

Package Contents:
1 x 4202 digital stepper motor (open loop)

⚠ Warning: Make sure the motor is connected to a constant current or chopper drive controller before testing. Connecting the motor directly to a power supply will destroy it.

Features:
1.Refractory ceramic fiber material high temperature cotton for key parts of 3D printers heating aluminum block insulation, the advantage is that the internal temperature changes gently, while saving power supply to achieve power saving effect.
2.Optimized internal structural design and increased extrude.Heat dissipation and throat insulation ensure long-term work without plugging.
3.Heating nozzle 12V, normal Operating temperature190°-250° setting Temperature does not exceed 280″temperature is too high.It is easy to damage high temperature resistant materials.
4.The extruder adopts High-end CNC machining completed the MK8 pointed nozzle is printed well.
5.There are long distance and short distance two types to choose from.

Descriptions:
1.Product is compact and light.
2.All – metal extruder.

Specifications:
Product Name: Extruder
Color: multicolr
Model: MK8
Material: Aluminum
Filament size: 1.75mm
Type:long distance , short distance optional

Package information:
Package size: 10cm x 10cm x 10cm
Package weight: 395g
Ploybag package

Package Included:
1 x Extruder
1 x Fittings Set

Notes:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.

Specifications:
for CNC guarding board:
The latest CH340G Shield 3.0 version for Arduino
Compatible with: for GRBL 0.9
For the 4 axes (X, Y, Z, A-Can copy X, Y, Z or use the custom firmware with pins D12 and D13 to make the complete 4th axis)
2 * end stops per axis (6 in total)
Coolant release
Compatible: for A4988 or DRV8825 stepper drive
Power: 12-36V DC
Compatible: for Kuman UNO R3, for Arduino
For DRV8825 Stepper Motor Driver: 2.5 A Maximum Current / Phase, Suitable for Arduino Software and Hardware
For Nema 17 stepper motor:
Model: 17HD48002H-22B
Step angle: 1.8°
Holding torque: 59Ncm (84 oz.in)
Rated current / phase: 1.7A
Frame size: 41 * 41mm/1.61*1.61in
Body length: 47mm/1.85in
Shaft diameter: 5mm/0.2in
Shaft length: 22mm/0.87in
Mechanical limit stop connection instructions:
Red line connected to VCC (slope +)
Black line connected to GND (slope – )
Green line connects SIGNAL (slope in s)
Tips: Under normal circumstances, the system must have at least 3 machines
Switch to the configuration you want.
Advantages: easy to install, the most common style
Cable length: 70 cm/27.56in

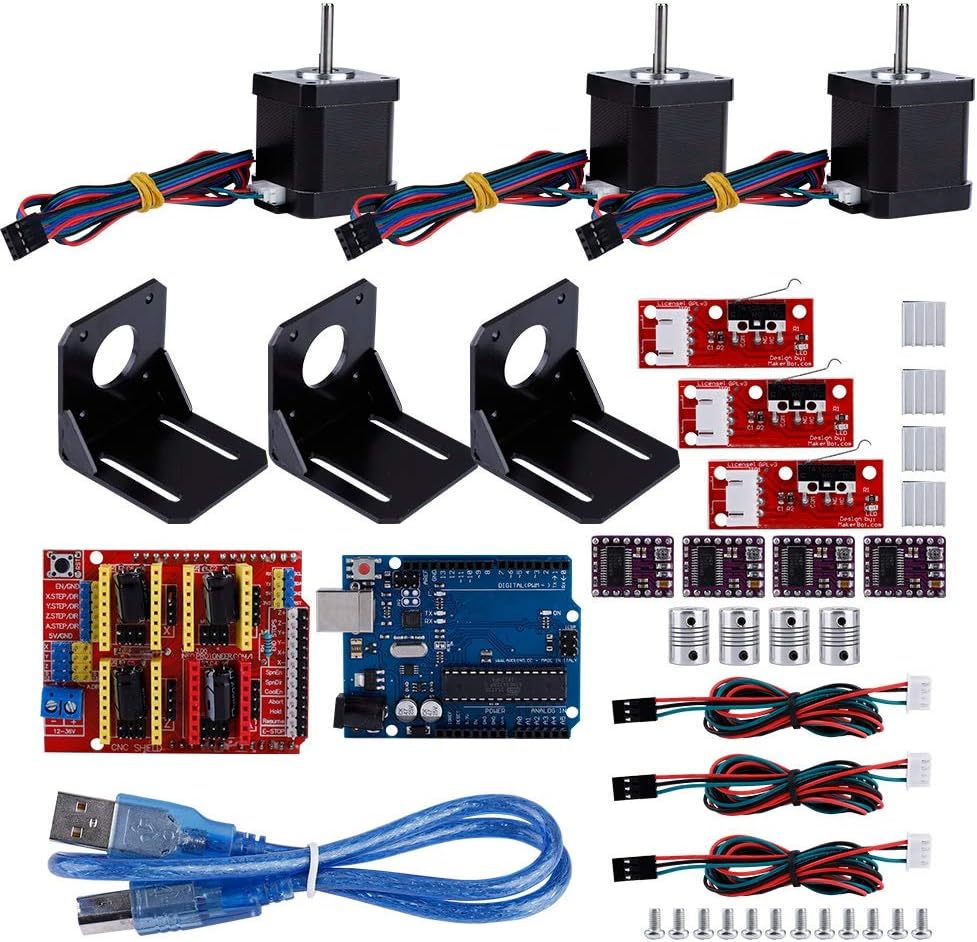

Package List:
1 * CNC guarding board
1 * board for Kuman UNO R3
4 * Stepper motor driver for DRV8825
4 * Aluminum cooler with 3meters tape
3 * 1.7 A stepper motor for Nema 17
3 * Stepper motor mount for Nema 17
12 * M3 screw, bracket for stepper motor
3 * mechanical switch end
3 * 3pin 70 cm cable
1 * 1.5 m USB cable for R3 board
4 * Coupling

Overview:

Smartrayc DM860C Digital 2-phase Stepper drive is based on TI’s 32-bit DSP platform and integrated with the micro-stepping technology and the auto tuning of power-up parameters. With the features of low noise, low vibration, low heating and high-speed high torque output, it is suitable for most stepper motors.

Key Features:

* Anti-Resonance provides optimal torque and nulls mid-range instability
* Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
* Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
* 16 Pulse/Rev: 400-25600
* Soft-start with no “jump” when powered on
* 8 selectable peak current including 2.4A to 7.2A
* Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
* Automatic idle-current reduction
* Suitable for 2-phase and 4-phase motors
* Support PUL/DIR mode
* Over-voltage and over-current protections

Electrical Specifications:

* Output Peak Current: 2.4~7.2A (6.0 RMS)
* Input Voltage: 24 ~ 80VDC or 18 ~ 60VAC
* Logic Signal Current: 7~16mA (Typical 10mA)
* Pulse Input Frequency: 0~200kHz
* Pulse Width: 2.5μS
* Cooling: Natural Cooling or Forced cooling
* Environment: Avoid dust, oil fog and corrosive gases
* Operating Temperature: -10℃~45℃
* Vibration: 10-55Hz / 0.15mm
* Weight: Approx.580g (20.5oz)

Packing List:

1 x Stepper Motor Driver DM860C

The corporate philosophy of "TongLingUSL" is "to make better products." Our factory is an ISO-qualified factory, so the quality control is very strict, because it is factory direct sales, so the price is not high, it can be distinguished from other products.

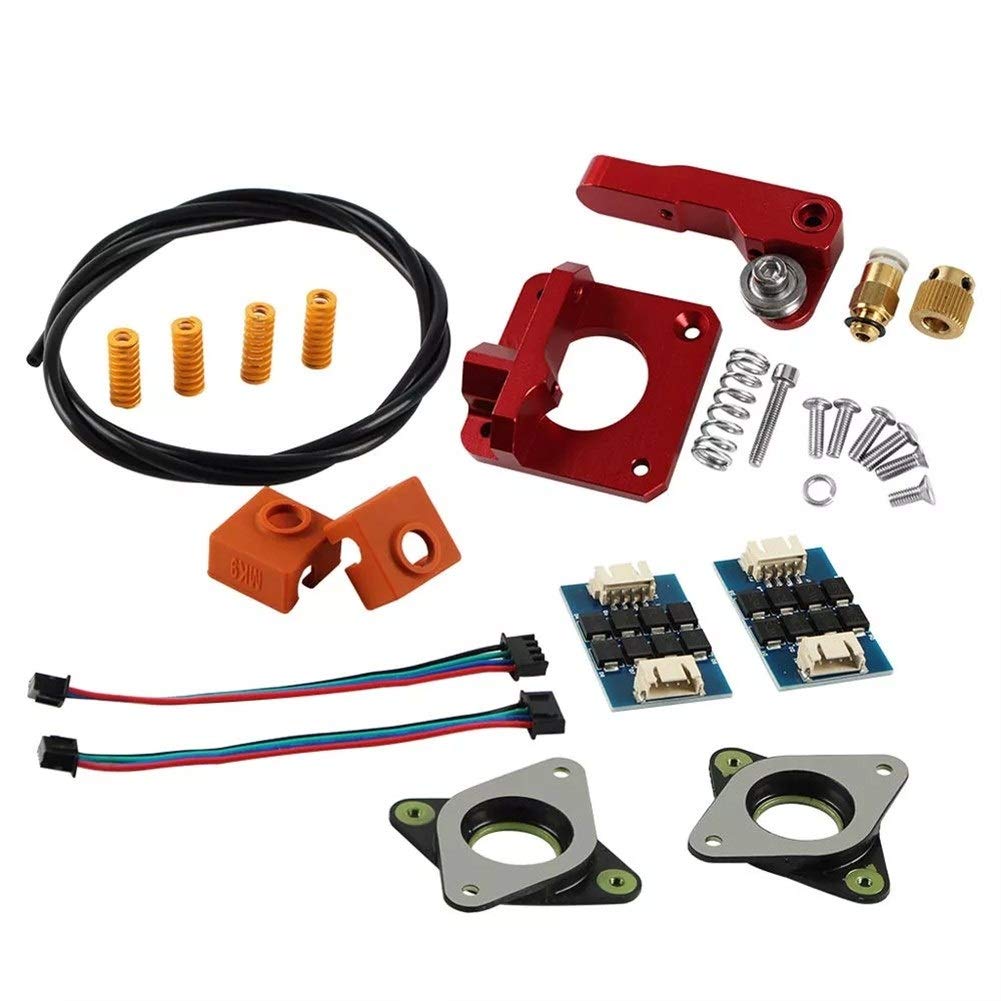

Package included:

1 x Extruder Kit
2 x Heating Block Silicone Cover
1 x 1m PETG Tube
4 x Leveling Spring
2 x Stepper Motor Shock Absorber
2 x TL-Smoother Module
Industrial & Scientific / Additive Manufacturing Products / 3D Printer Parts & Accessories / 3D Printer Accessories
Notice: Actual color may be slightly different from the image due to different monitor and light effect

WZZUS has a short history with its founding in 2019, but its polite manufacturing practices, which have not changed since the brand was founded, have received high praise not only from Japan but also from overseas. It is only a high-quality item that can be used for a long time because it is so detailed and intimate.

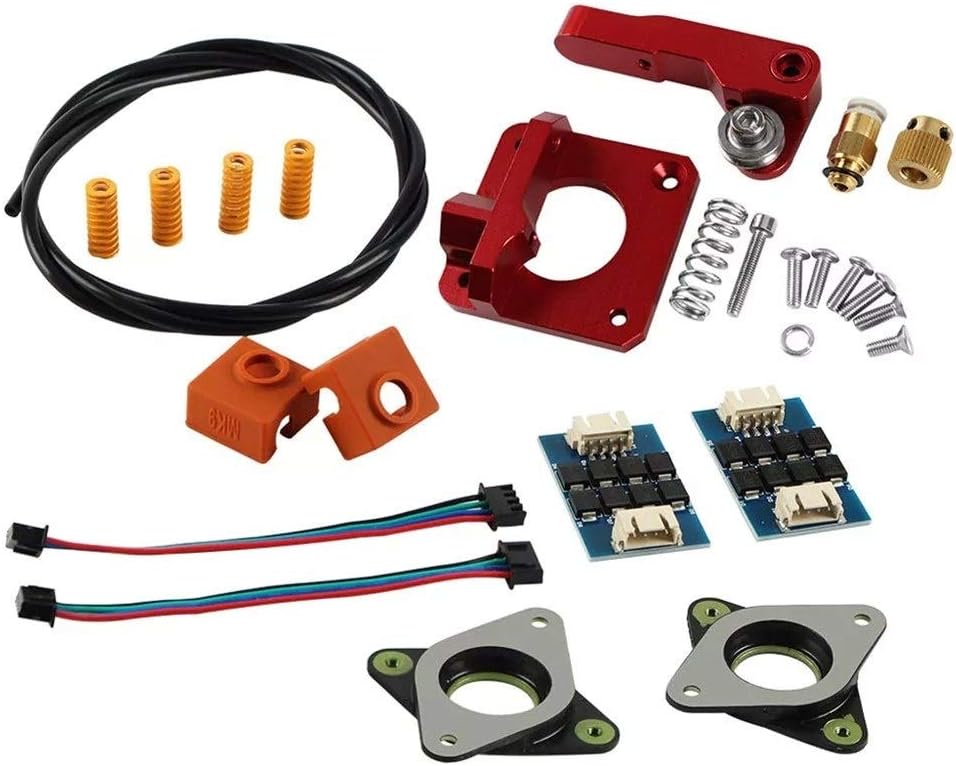

Package included:

1 x Extruder Kit
2 x Heating Block Silicone Cover
1 x 1m PETG Tube
4 x Leveling Spring
2 x Stepper Motor Shock Absorber
2 x TL-Smoother Module
If there are any questions, please feel free to contact us,Our Customer Service Team will spare no efforts to assist with you within 24 hours.

Notes
We pay close attention to inventory management, but there may be differences in selling and inventory shortages. Thank you for understanding.

Conclusion

By our suggestions above, we hope that you can found heating stepper motor for you.Please don’t forget to share your experience by comment in this post. Thank you!
